MAW48 Glass mobile partition walls

System description

Glass mobile wall is a product bringing an impression of lightness and elegance to the interior. They let in natural light and visually enlarge the room space. This is an option for those who insist on solutions not only functional, but elegant and endearing.

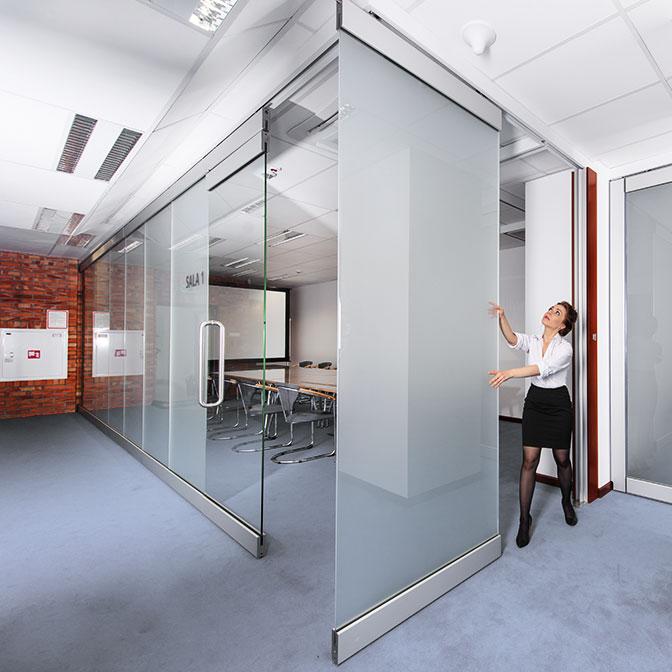

If our choice is to divide the surface with a glass wall, it does not need to install it permanently. Much more preferred choice is a mobile, sliding wall, allowing a complete removal of the room separation at any time. This flexibility can be useful for example in shopping malls exibition sites, where full access to its interior is needed for a period of time or in places where glass divisions gives spaciousness and its mobility allows you to quickly reorganize the interior.

Technical specifications

Panel thickness

48 mm

Operation

manual

Wall height

2000 - 3680 mm

Suspension

2-point

Panel width

500 - 1300 mm

Filler

ESG tempered glass with 10 lub 12 mm thickness

Door

single or double door panel

Panel weight without filler (system)

5,82 kg/m2

Panel weight with standard filler

29,57 kg/m2



System construction

MAW48 glass mobile wall slides on the aluminum track mounted to the room ceiling or on the superstructure:

  • double disc standard carriage in 2-level aluminium track
  • lightweight six-bearing carriage in 1-level aluminium track

The construction of MAW48 mobile glass wall is made of aluminum and tempered glass fillers with a thickness of 10 or 12mm. Clips for carriage mounting are installed in the upper rail, while the sliding locks immobilising a wall panel, are placed in the bottom rail. In both profiles, sealing brushes are mounted.



Door

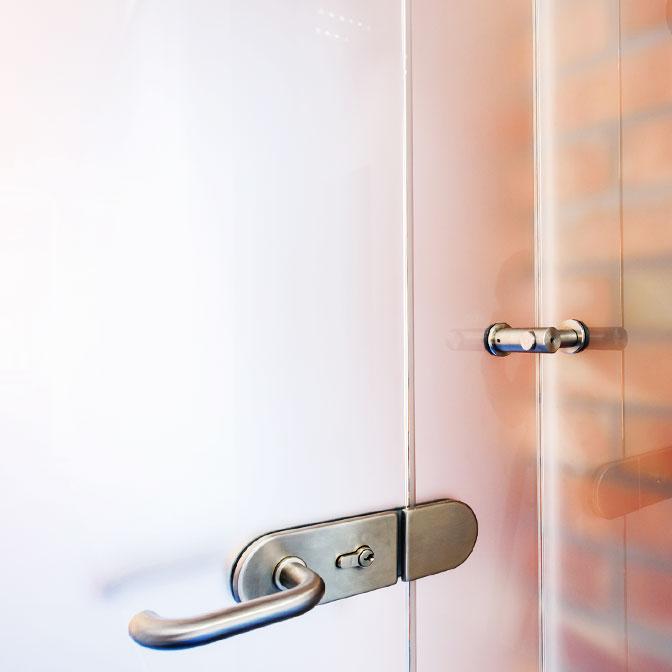

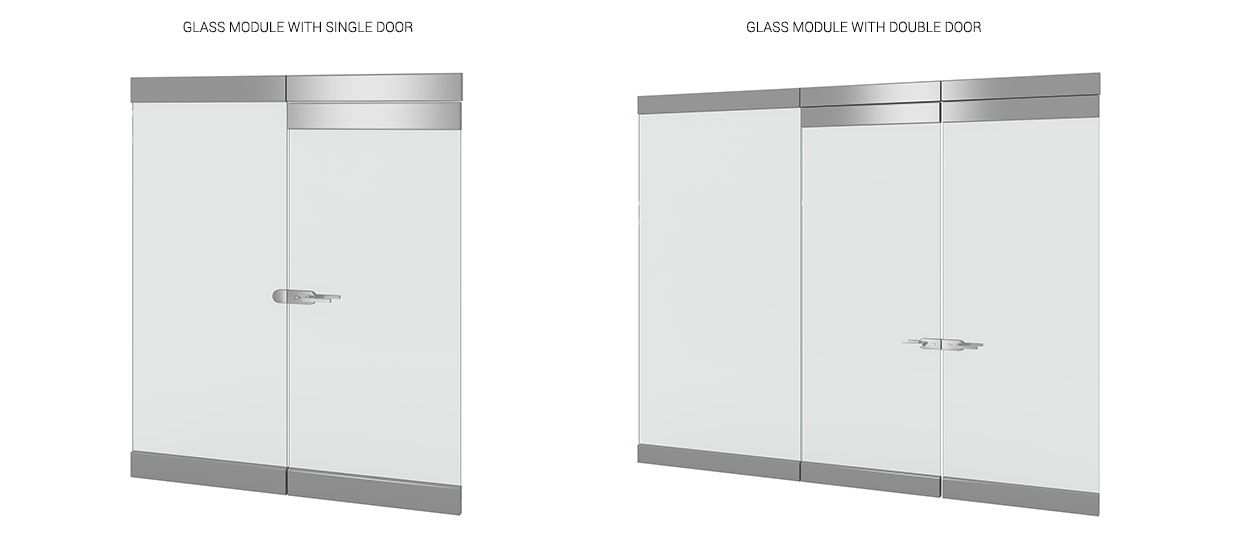

In any stretch of the MAW48 glass wall, you can install single or double door panels. Depending on the customer's preferences, traditional or electronic locks are installed.

KOMANDOR, global expert in interior design, producing original sliding systems for 25 years, thanks to its experience and production capacity, guarantees service of the highest quality.

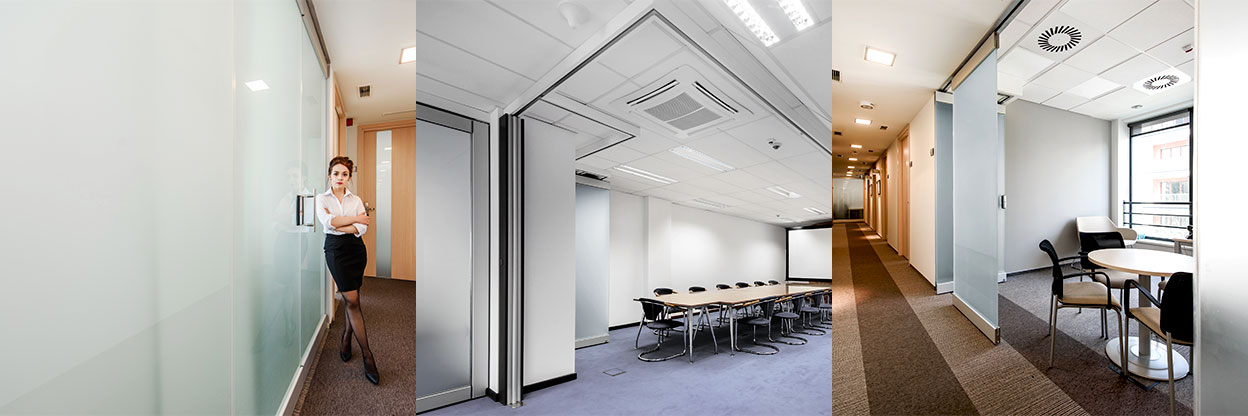

Click here and go to the full gallery
